A SPACE FOR 8 PEOPLE

BUBLIING R

DESIGN YOUR BUBLIING

A SPACE FOR 8 PEOPLE

BUBLIING R

DESIGN YOUR BUBLIING
SOUNDPROOF - CLASS A

>30dB

AIRFLOW

1121,6m3/h

AUTOMATIC LIGHTING

3000K-4500K

ENERGY CONSUMPTION

118W

AT EVERY STEP,
A LIMITLESS SPACE.

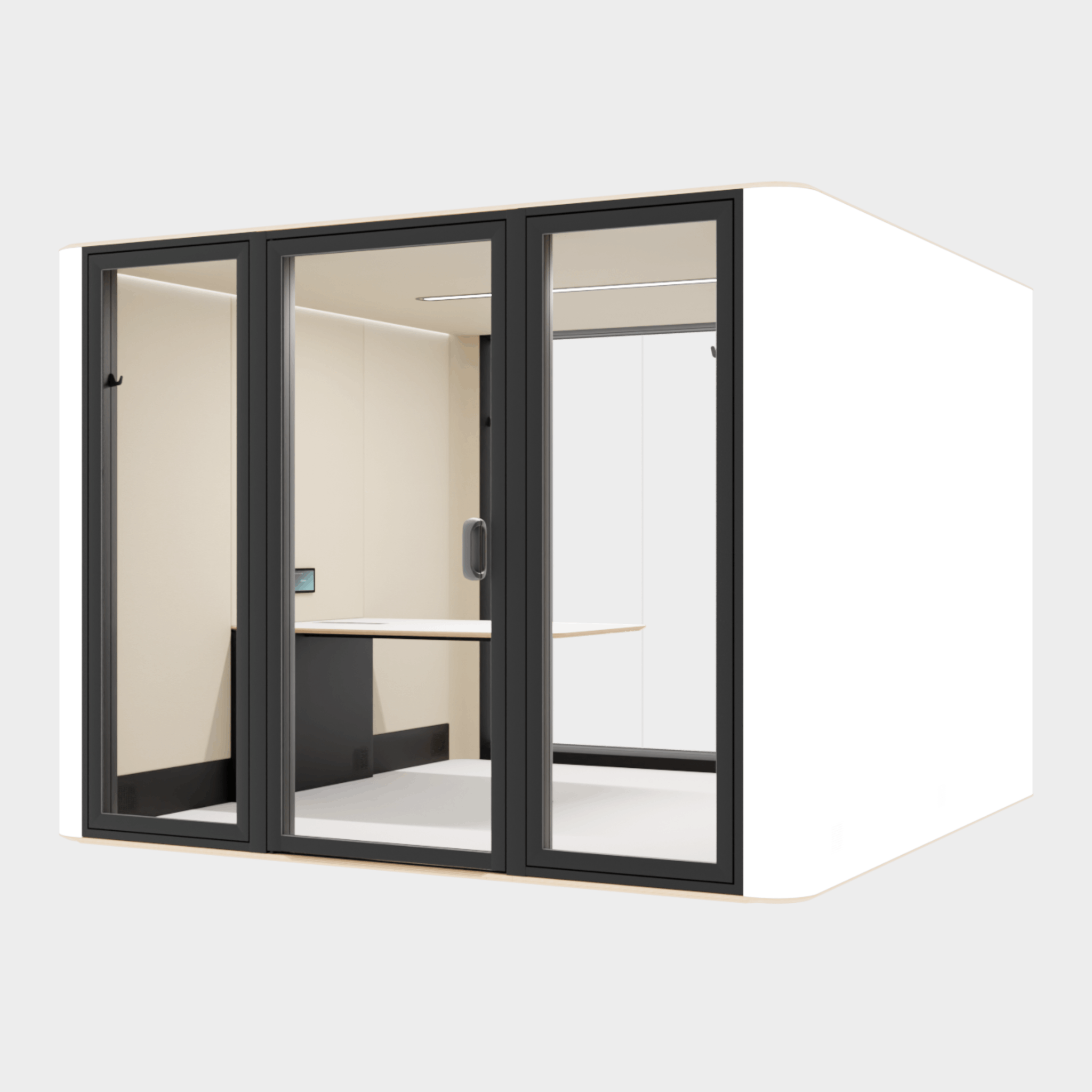

A SPACE FOR 8 PEOPLE.

Being the largest of all models, this BUBLIING redefines the limits of flexibility and mobility. Its innovation provides freedom of movement, offering a space that adapts to various layouts.

EXTERIOR
3000x3000x2245 mm
118,46x118,46x88,39 in

INTERIOR
2708x2976x2114 mm
106,61x117,17x83,23 in



Bubliing
Bubliing

AT EVERY STEP,
A LIMITLESS SPACE.


A SPACE FOR 8 PEOPLE.

Being the largest of all models, this BUBLIING redefines the limits of flexibility and mobility. Its innovation provides freedom of movement, offering a space that adapts to various layouts.

EXTERIOR
3000x3000x2245 mm
118,46x118,46x88,39 in

INTERIOR
2708x2976x2114 mm
106,61x117,17x83,23 in



PRIVACY GUARANTEED


CLASS A | With sound reduction of over 30dB, we ensure acoustic privacy according to the ISO 23351-1 testing method, one of the best ratings in the industry.

VENTILATION SYSTEM


78m³/h | Value determined in the laboratory according to ISO 12569:2017. The air is renewed, on average, every 2.7 minutes. In standby mode, the system activates for 10 minutes per hour.

AUTOMATIC LIGHTING


3500K-4000K | Automatic LED lighting that can be adjusted in intensity and color temperature, ensuring suitable lighting for different needs and times of the day.

UNLIMITED CONNECTIVITY


offers 4 standard schuko sockets, 1x USB-C port, 1x USB-A port, and 1x RJ45 network socket, so you´re always connected. to have full control at your fingertips, get a 7-inch control screen.


DO MORE, DO BETTER
WITH ALLL RESOURCES

- Metal hydraulic air spring for door closing.
- Bubliing Fresh Air, non-adjustable and noise-free.
- Metal interior monitor support. The maximum monitor size is 32/42 inches.
- Metal exterior monitor support. The maximum monitor size is 32/42 inches.
- Indoor whiteboard 1594x910 mm / 62,76x35,83 in
- Outdoor whiteboard 1594x910 mm / 62,76x35,83 in

FOR TABLE:

- Low table for 6 people 1400x1000x730 mm / 55.12x39.37x28.74 in
- High table for 6 people 1400x1000x1050 mm / 55.12x39.37x41.34 in
- Low table for 8 people 1800x1000x730 mm / 70.87x39.37x28.74 in
- High table for 8 people 1800x1000x1050 mm / 70.87x39.37x41.34 in

- Support bar (1) located on the door, inside, at a height of 850mm / 33.46 in.
- Protection plates (2) for the door, inside and outside 840x180 mm / 33.07x7.09 in.
- Access ramp with a height of 23 mm / 0.91 in.

We recognize that each person has unique preferences for their comfort and personal environment, which is why we developed a 7-inch high-resolution control screen. This feature allows you to control the settings of the BUBLIING, adjust the lighting and airflow. It also informs you about the ambient temperature and reservations in the calendar.

Each BUBLIING comes equipped with two LED presence indicators on top, one on each side—green or red—allowing people to know whether it is occupied or available for use, promoting efficient management of shared spaces. These indicators immediately detect when someone enters or leaves the BUBLIING, adjusting the lighting and ventilation accordingly.

Assembling a BUBLIING is simple and quick. The design has been thought out to make the assembly process easy, with parts that fit together intuitively. Just follow the step-by-step instructions, and in no time you´ll have a soundproof and comfortable environment.

A modular and durable design, with easily replaceable components, ensures that the BUBLIINGs have a prolonged lifespan.

TECHNICAL SHEET

DIMENSIONS
EX | 3000x3000x2245 mm
EX | 118,46x118,46x88,39 in
IN | 2708x2976x2114 mm
IN | 106,61x117,17x83,23 in

SOUNDPROOF
Speech level reduction
Class A | DB,A > 30dB

VENTILATION
Airflow | 1121,6m3/h
10 fans

LIGHTING
Automatic and adjustable
3500K-4000K

CONNECTIVITY
4 Schuko sockets - 230V
1 USB-C port
1 USB-A port
1 RJ45 port

POWER
Standard consumption | 118W
Standby consumption | 0,98W

TECNOLOGY
LED occupancy indicators
7-inch control screen

Bubliing
A SPACE FOR EVERYONE

THE TECHNOLOGY THAT CONNECTS
PEOPLE AND TRANSFORMS YOUR OFFICE

BUBLIING seeks to keep up with technological innovation, so you can now have full control at your fingertips for a better work experience. Adjust the lighting and ventilation, book your BUBLIING, and highlight your favorite spaces.

MORE
Bubliing
Bubliing
A SPACE FOR EVERYONE

THE TECHNOLOGY THAT CONNECTS
PEOPLE AND TRANSFORMS YOUR OFFICE

BUBLIING seeks to keep up with technological innovation, so you can now have full control at your fingertips for a better work experience. Adjust the lighting and ventilation, book your BUBLIING, and highlight your favorite spaces.

MORE
Bubliing
A SPACE FOR EVERYONE

PORTFOLIO BUBLIING:
YOUR BEST SOLUTION

Each BUBLIING is a personal retreat, ideal for calls, meetings, or simply for moments of focus. Choose the BUBLIING that best suits your needs.

BUBLIING PORTFOLIO
